Vertical centrifugal pumps made in thermoplastic materials

Industrial pumps suitable for high corrosive liquids containing solids

  • Centrifugal pump with coupling.
  • Materials available: PP, PVDF.
  • Max flow: 130 m3/h; Max head: 48 mlc.
  • Temperature: PP: max 70°C; – PVDF: max 90°C.
  • Suitable for high corrosive liquids containing solids in suspension.
  • Length of the column: from 500 to 2000 mm.

Vertical centrifugal pumps with bracket series HVL are made of thermoplastic materials (PP and PVDF) and are suitable to pump high corrosive liquids with solids. These vertical pumps can transfer chemicals up to a capacity of 130 m3/h and a maximum head of 48 mlc. Pump series HVL are available with different column lengths from 500 mm to 2000mm.

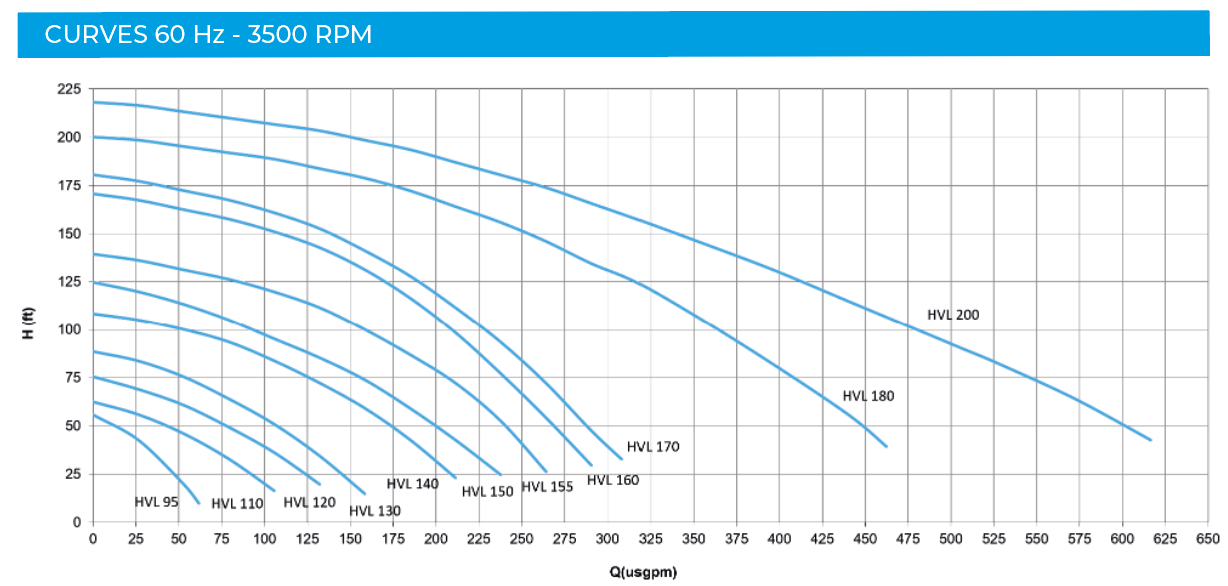

* The head and flow of the pump refer to the performance with water at room temperature. Should liquids at high temperatures and with high viscosity and density be pumped the performance has to be calculated accordingly. The electric motor should be selected on the basis of the viscosity and the specific weight given by the customer.

* For any further information and quotation you can fill in the online form or send an email to info@gemmecotti.com. Our commercial office will select the pump suitable for your needs.


GemmeCotti offers different accessories that can be supplied together with our vertical pumps: suction strainer, extra pipe connected to suction port maximum 50 cm, flange on the discharge port.
