DESCRIPTION

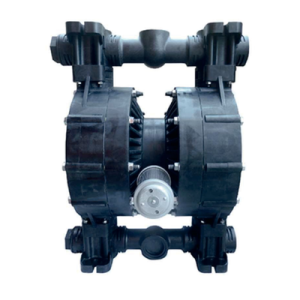

HAOD air- operated double diaphragm pumps are suitable for aggressive liquids, even with

very high viscosity and solids in suspension. They are built with an anti-stalling pneumatic circuit which ensures the highest possible level of security and efficiency and doesn’t require lubricated air.

HAOD pneumatric pumps are available in several materials and dimensions and the ATEX version can work in potentially explosive atmosphere.



MAIN FEATURES

  • Available in PP, PVDF and AISI316
  • Suitable for high viscosity fluids and solids in suspension
  • Suitable for corrosive atmospheres
  • Suitable for potentially explosive atmospheres in their ATEX II 3G version (zone 2) IIB T135°C
  • New generation PTFE diaphragms with embodied in/out piston
  • Ecological design ensuring a reduction of air consumption
  • Manufactured with anti-stalling circuit and ice barrier protectives to keep performances unaltered over time
  • Individually tested before shipment
  • Easy assembling and disassembling
  • Automatic suction and potential to be submersible

Materiali di costruzione disponibili: PP/PVDF, ECTFE, AISI 316, ALLUMINIO

DATI TECNICI 50 HZ 60 HZ
Portata 0÷340 l/min 0÷90 GPM
Prevalenza massima 7 BAR 100 PSI
Temperatura 0°/+95° C 32°/+203° F
INDUSTRIES SUPPLIED
Chemical, petrochemical, pharmaceutical, paper mills, textile industry, food processing, sugar plants, dairies, electronics, water treatment plants, any hazardous chemical application.
