HTP – AISI 316 MAGNETIC DRIVE ROTARY VANE PUMPS

Rotary vane pumps made in AISI 316

Anti-corrosion industrial pumps suitable for pumping hydrocarbons, solvents, heat transfer oils, refrigerants, cryogenics and radioactive liquids.

  • Materials available: AISI 316.
  • Materials in contact with the liquid:
    pump body, end cover and rotor: AISI 316;
    o-ring: EPDM/VITON; carbon graphite stator.
  • Max flow: 2100 l/h. Max pressure 13 bar.
  • Temperature range: from – 70°C to + 200°C.
  • Max viscosity: 2000 cPs.
  • System Pressure 25 bar at 20°C.
  • Available in ATEX version for zone 1 II3G and zone 2 II3G (pump mod. EM-P).

Magnetic drive vane pumps series HTP are made of AISI 316 and are suitable for hydrocarbons, solvents, heat transfer oils, refrigerants, cryogenics and radioactive liquids. Thanks to the innovative mag drive system, pumps model HTP reduce the risks of leakage and emissions and the maintenance costs. HTP pumps are useful for low flow and high head applications such as Pilot Plants, Sampling and Flushing of mechanical seals. Especially designed for thin non-lubricating liquids and/or high differential pressure.

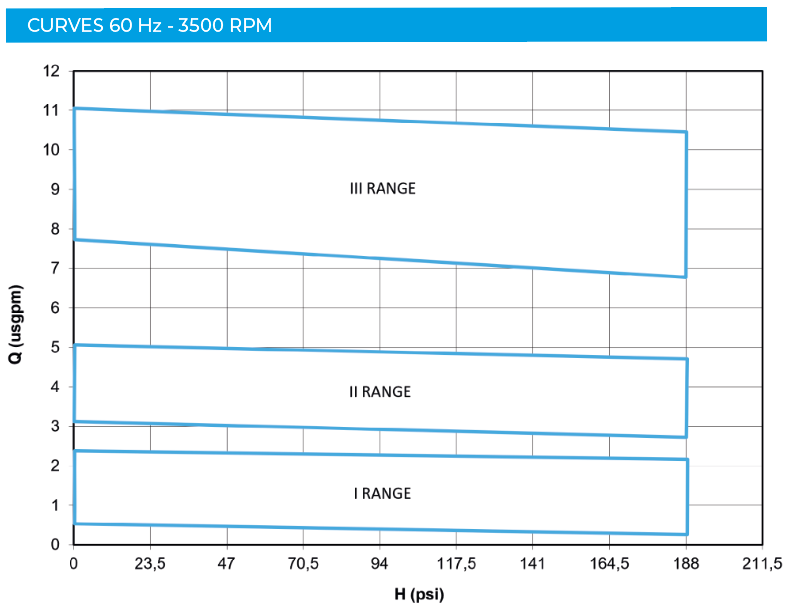

TECHNICAL DATA

* The head and flow of the pump refer to the performance with water at room temperature. Should liquids at high temperatures and with high viscosity and density be pumped the performance has to be calculated accordingly. The electric motor should be selected on the basis of the viscosity and the specific weight given by the customer.

*For any information and quotation you can fill in the online form or send an email to info@gemmecotti.com. Our commercial office will select the pump suitable for your needs.

STRONG POINTS OF HTP PUMPS

htp-pompe-rotative-palette-trascinamento-magnetico-acciaio-autoadescanti

MANUFACTURING MATERIALS

HTP pumps are made of stainless steel AISI 316 and they are compatible with most acids and basic liquids, chemicals and other dangerous fluids.

LEAK FREE MAGNETIC DESIGN

Advantages of magnetic drive pumps:
no mechanical seal
no leakage and emissions
no motor/pump alignment
environmental sustainability
reliability and safety
limited periodic maintenance with long-term savings

VOLUMETRIC VANES

HTP vane pumps are designed to operate with low flow rates, high head and constant flow.
Their flow is directly proportional to the speed of the motor and are able to pump liquids with viscosity up to 2000 cps.

MAGNETS

HTP series pumps are equipped with NdFeB magnets that ensure high magnetic torque.

MAGNETIC DRIVE DESIGN

Magnetic drive pumps are designed with a special sealless configuration that is suitable for transferring acids, chemicals, corrosive and dangerous liquids thanks to the high chemical resistance of their construction materials and to the absence of leakage and emissions. The structure is really simple and it requires very little maintenance with consequent saving in terms of repairing, spare parts and machine downtime (costs during the pump life).  This type of pump is not suitable for transferring liquids with solids.  Liquid must necessarily be clean and free of suspended solids (max presence of solid admitted: max 2% – max 1mm).
Discover more about magnetic drive pumps

OPTIONAL

FLANGES

On request GemmeCotti provides DIN e ANSI flanges for thermoplastic pumps (flat stub + slip-on flanges) and welded DIN o ANSI  flanges for pumps in AISI 316.

More informations about flanges

BASEPLATES

GemmeCotti baseplates are suitable for pump completed with motor with B3/B5 configuration. They allow the correct positioning of the pump.

More informations about baseplates

A1-13Y

We recommended the use of the dry-running protection device for all the applications where the constant presence of liquid in the pump is not always  ensured.

More informations about dry-running device
